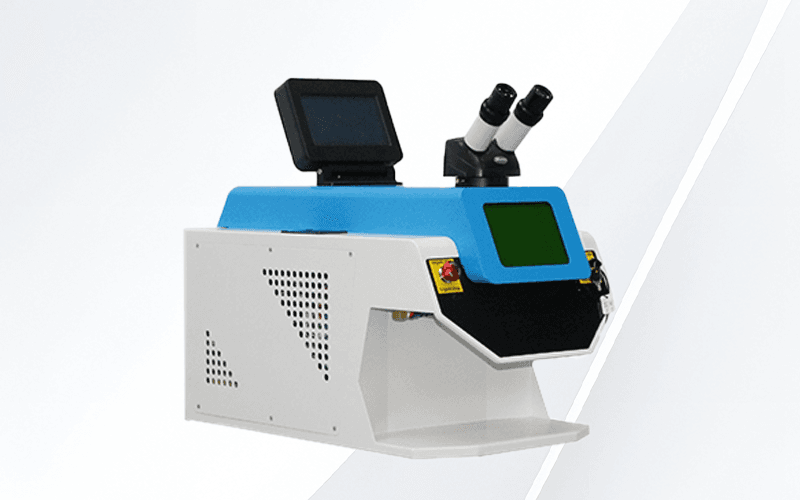

100w 200w Portable Jewellery YAG Laser Welding Machine
Model: ZFW-200W
- Ergonomic design of the entire machine, with four colors to choose from, stable performance,
suitable for long-term continuous work needs;
- Large internal space and convenient placement of tools;
- The work area is equipped with adjustment switches for light spots, laser parameters, etc.,
making it more convenient to use;
- Using a microscope and CCD simultaneously makes observation more convenient.
- Adjustable brightness LED circular shadowless lamp for clearer observation of welding positions;
- More refined light points to meet the needs of precision welding;
Machine Woring Video
Precise cutting effect to meet the cutting needs of each customer
Configurations Instruction
YAG Crystal Rod
ND:YAG crystals are currently the more comprehensive solid-state laser materials with high gain, low threshold, high efficiency, low loss, good thermal conductivity and thermal shock resistance, and are suitable for a wide range of laser modes of operation (continuous, pulsed, Q-switched, mode-locked, frequency-doubling, etc.).

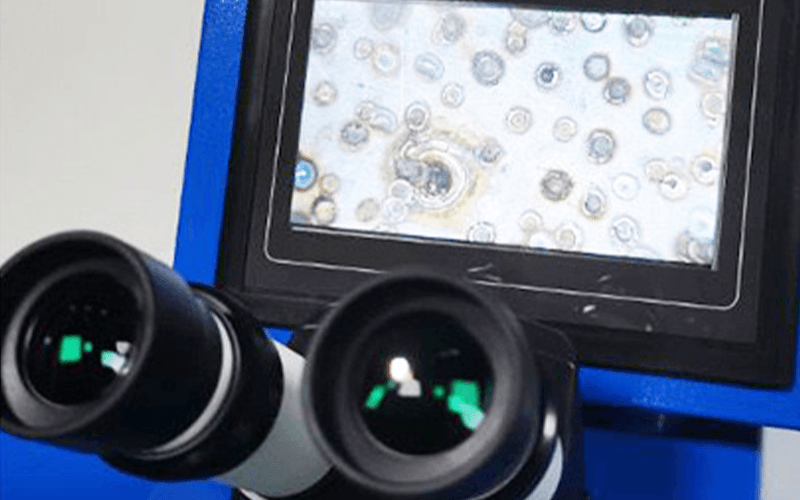

Microscope
-High Definition Microscope: Binocular microscope, ergonomic, optical; the human eye for a long time observation is not easy to fatigue. -HD touch screen, CCD monitor two-in-one: One screen can realise welding parameter adjustment, light spot positioning and effect observation.
Application
Suitable for repairing and welding precision laser devices, welding and processing various metal structural components, gold and silver jewelry.

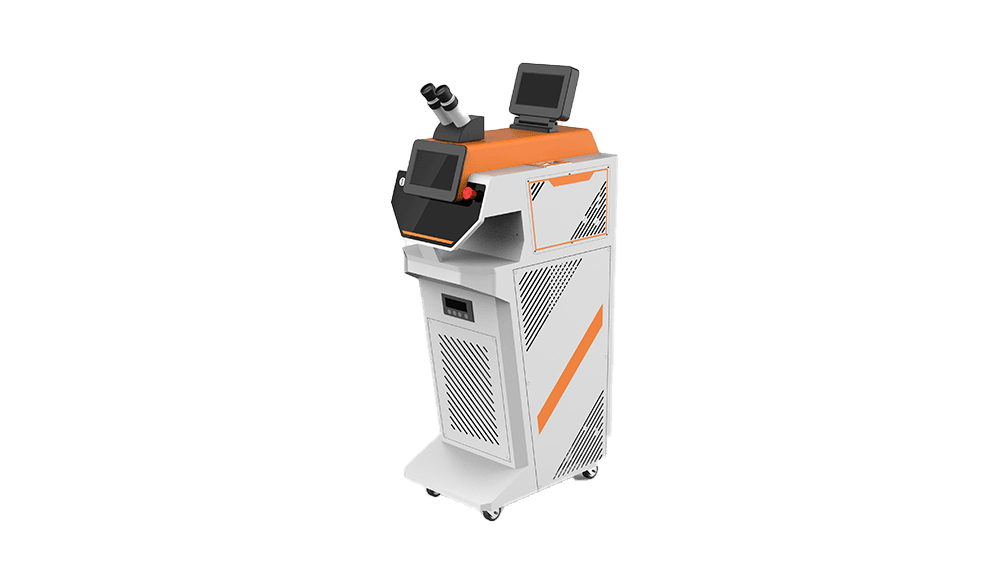

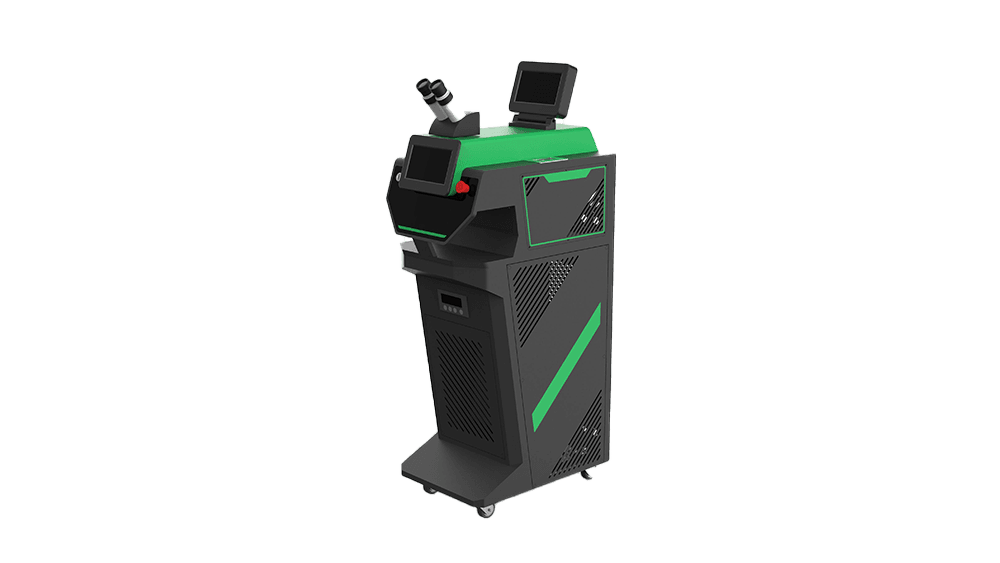

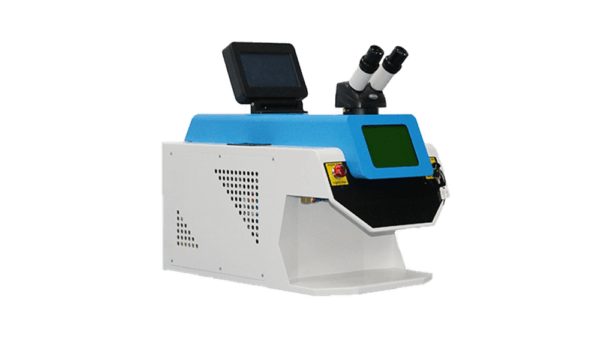

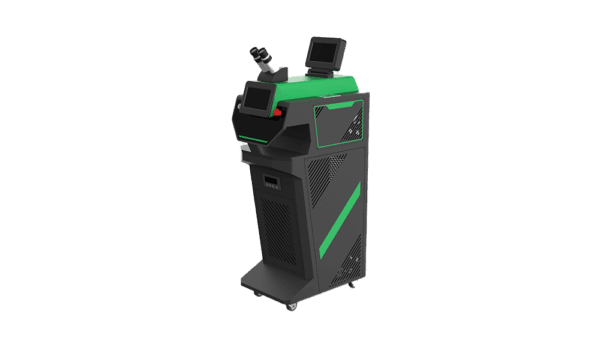

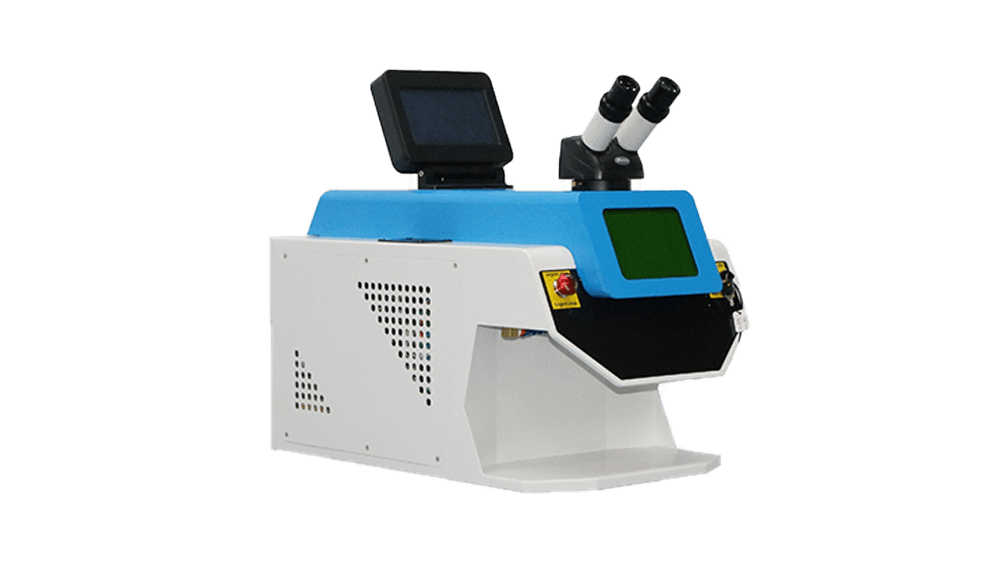

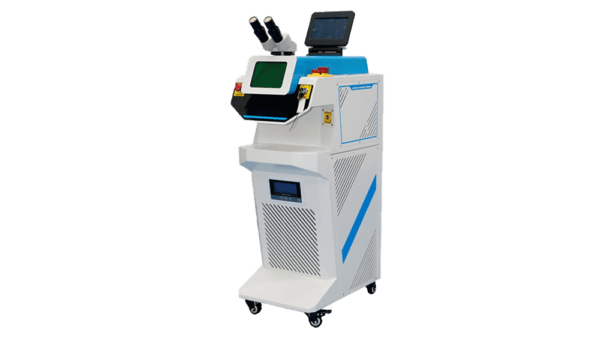

Machine Appearance
Support a variety of colours and logo customization, there are large size and small size machines for customers to choose from.
Machine Processing
Machine Parameters
| Model | ZFW-200W | ZFW-100W |
| Maximum laser power | 200W | 100W |
| Laser wavelength | 1064nm | 1064nm |
| Focusing cavity reflector | Imported ceramic concentrator chamber | Imported ceramic concentrator chamber |
| Laser Frequency | 1-25Hz | 1-20Hz |
| Pulse width | 0.2-10Ms | 0.2-10Ms |
| Spot adjustment range | 0.2-3mm | 0.2-2mm |
| Aiming and positioning | Microscope, camera system | Microscope, camera system |
| Cooling | Water Cooling | Air Cooling |
| Rated Power | 7kw | 5kw |
| Electricity demand | 220V±5V 50Hz/60A | 220V±5V 50Hz/60A |
| External dimensions | 360×550×1170mm | 800×500×620mm |

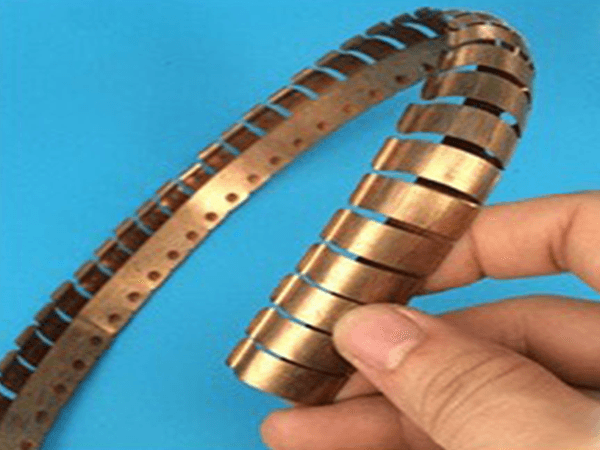

Samples
