200W 400W Articulated Arm Mold Repair Laser Welding Machine
1.The use of imported ceramic spotlight cavity, high reflectivity, strong energy, high temperature resistance, corrosion resistance, ultra-long service life;
2.Equipped with 1.5 special chiller, can meet the long time, high power welding stability;
Note: 400W with 3P chiller
3.Equipped with three-dimensional load-bearing table base electric lifting, table movement using precision ball screws and high-precision linear guide is light and flexible, accurate positioning, load-bearing up to 100kg;
4.The laser head can slide back and forth, manual lift, the laser head can be conveniently rotated 180 degrees, easy to make up welding any side;
5.Equipped with gas protection system, effectively protect the product in the welding process is always protected by argon, to maintain the product colour to ensure the welding quality.
Machine Woring Video
Precise cutting effect to meet the cutting needs of each customer
Configurations Instruction

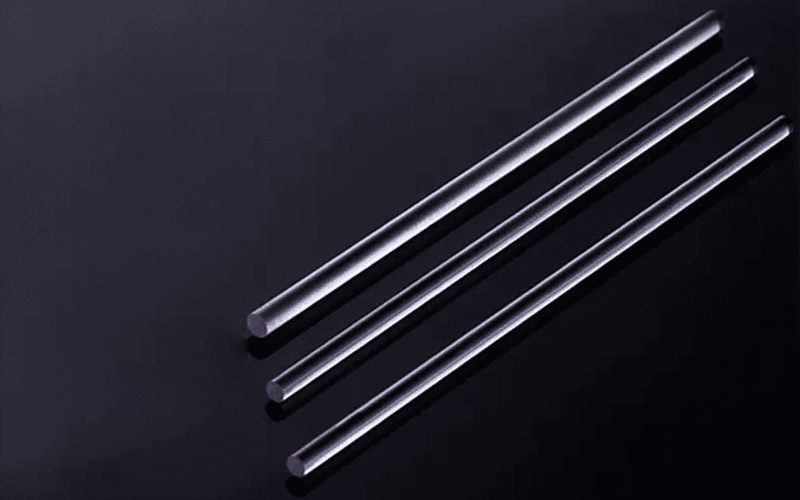

YAG Crystal Rod
ND:YAG crystals are currently the more comprehensive solid-state laser materials with high gain, low threshold, high efficiency, low loss, good thermal conductivity and thermal shock resistance, and are suitable for a wide range of laser modes of operation (continuous, pulsed, Q-switched, mode-locked, frequency-doubling, etc.).

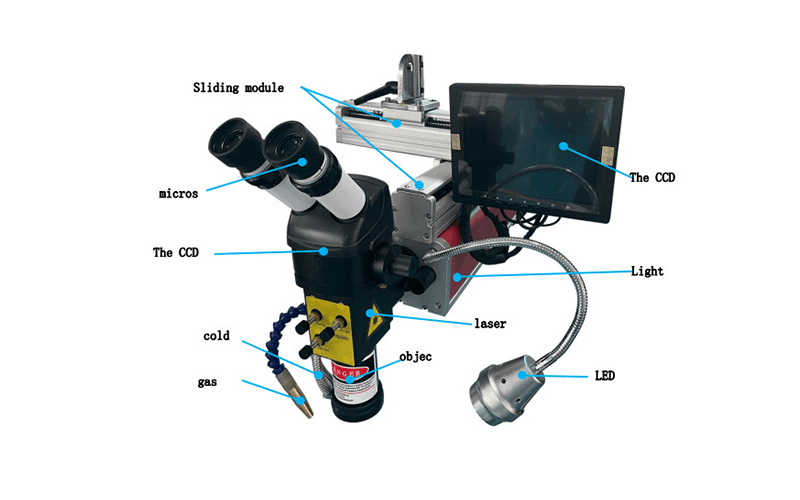

Microscope
-High Definition Microscope: Binocular microscope, ergonomic, optical; the human eye for a long time observation is not easy to fatigue. -HD touch screen, CCD monitor two-in-one: One screen can realise welding parameter adjustment, light spot positioning and effect observation.

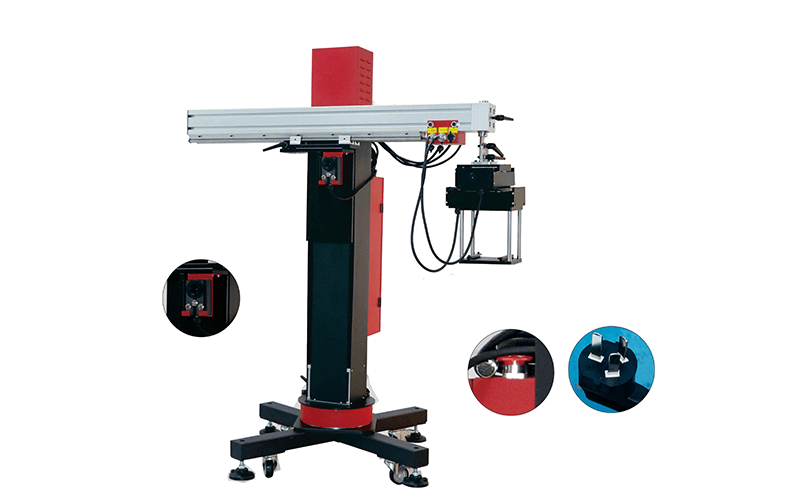

Articulated Arm
Flexible adjustment of the welding angle position in 10 directions, suitable for all kinds of moulds and moulds to make up the welding. For large moulds, you can weld the moulds directly on the ground or on the forklift truck without using the working table. The laser head can be slid back and forth, manually lifted and lowered, and the laser head can be portably rotated 360 degrees to facilitate patch welding on any side.
Application
Suitable for large-scale mould repair welding, mobile phone communications, jewellery crafts, electronic components, clocks and watches, sensors and instruments, precision machinery, hardware, gas car parts, etc., a variety of metals and alloys.
Machine Processing
Machine Parameters
| Model | ZFW-200W | ZFW-400W |
| Maximum laser power | 200W | 400W |
| Laser wavelength | 1064nm | 1064nm |
| Focusing cavity reflector | Imported ceramic concentrator chamber | Imported ceramic concentrator chamber |
| Current Adjustment Range | 60-150A | 60-150A |
| Pulse width | 0.3-10Ms | 0.3-10Ms |
| Spot adjustment range | 0.2-2mm | 0.2-3mm |
| Aiming and positioning | Microscope, camera system | Microscope, camera system |
| Water Cooling Power | 1.5P | 3P |
| Rated Power | 8kw | 12kw |
| Electricity demand | 380V±5V 50Hz/40A 220V±5V 50Hz/60A | 380V±5V 50Hz/40A |

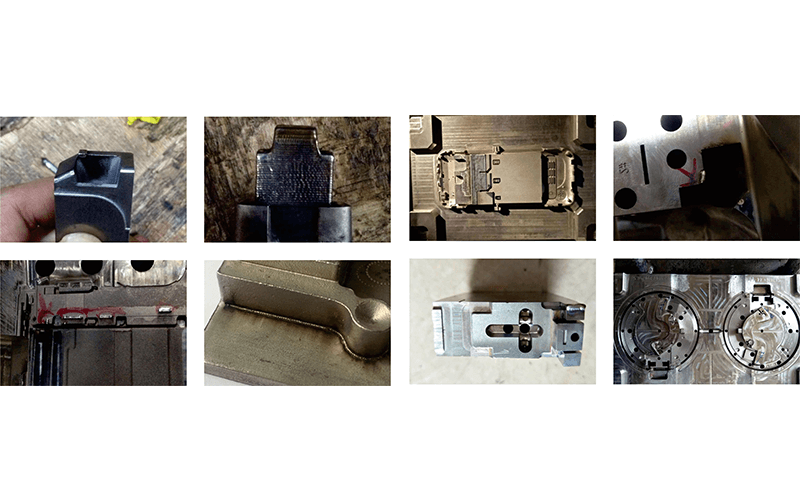

Samples
