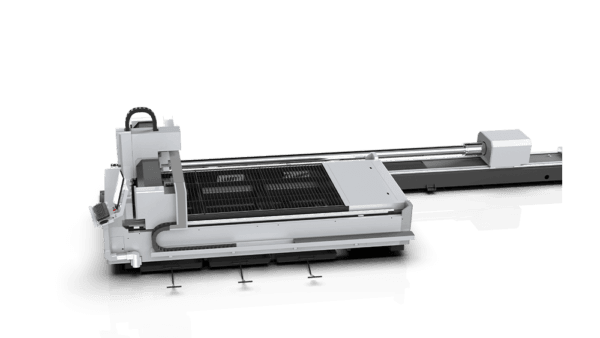

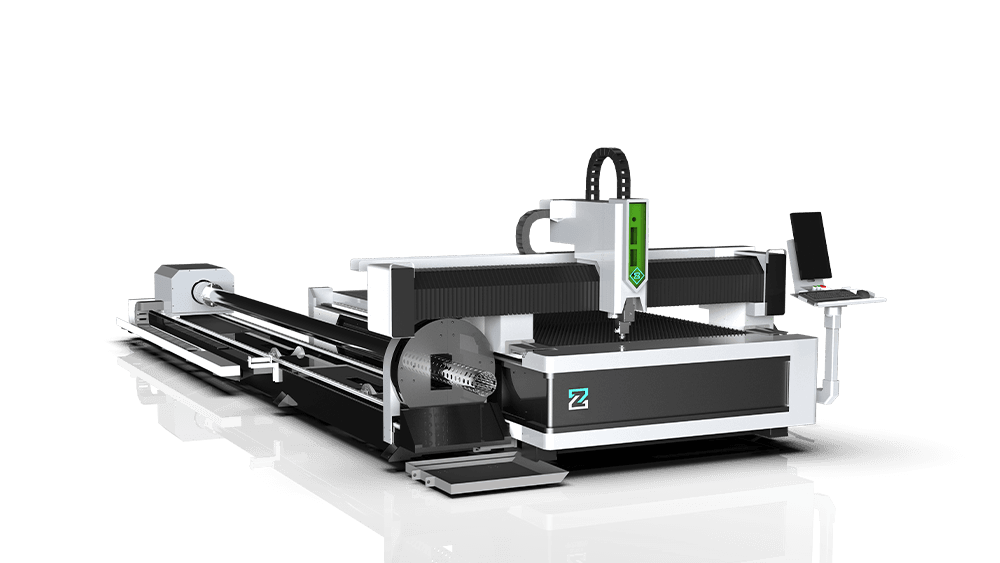

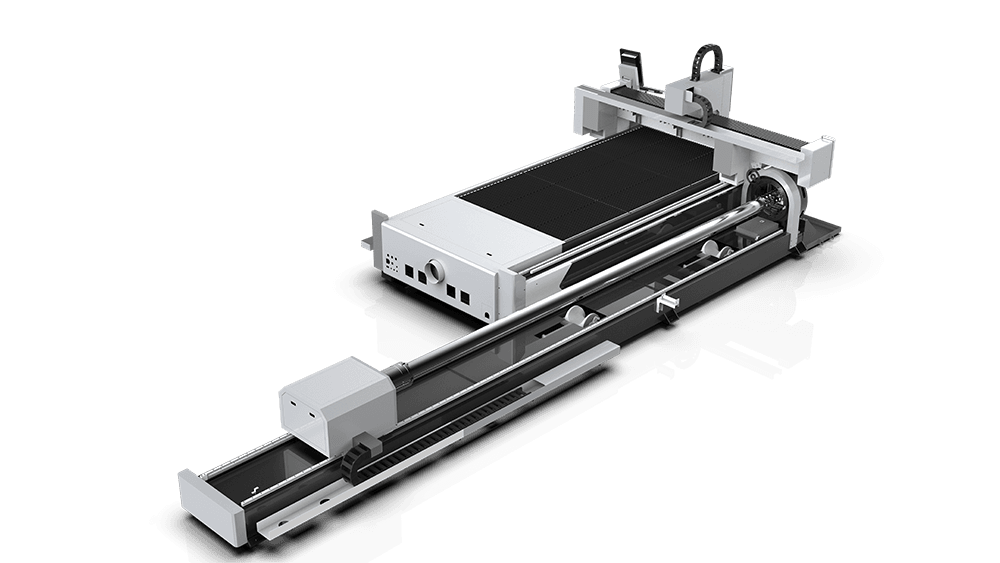

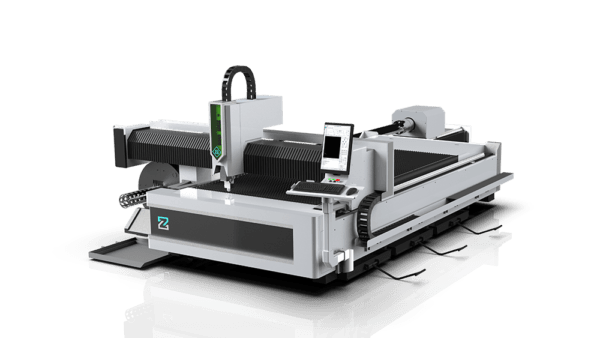

3015AC Metal Sheet And Tube Fiber Laser Cutting Machine
Model: ZF3015AC
Suitable Material: Stainless Steel, Carbon Steel, Copper, Brass, Galvanised or other Metal Materials
Tube & Sheet Fiber Laser Cutting Machine
Payment: TT/ LC/Visa/ Mastercard/Credit Cards/Paypal/DP
Warranty: 3 Years
Min. Order Quantity: 1 Set
Supply Ability: 100 Sets Per Month
Machine Woring Video
Precise cutting effect to meet the cutting needs of each customer
Configurations Instruction
Fiber Laser Source
We support laser brands such as MAX, Raycus, IPG, Reci, etc., and provide lasers according to customer requirements. The laser sources a long life and maintenance-free operation, high electro-optical conversion efficiency, good beam quality, high energy density, remote networking diagnosis system, wide modulation frequency, and strong reliability features.
Intelligent Control System
2-Chuck EtherCAT controller for regular tube cutting, 3 work modules of thin tube, tube-and-sheet, standard to be chosen. Support L/U/H beam centering, improve cutting efficiency
Intelligent Operation Software
TubePro designed for professional tube cutting, supports production of tube and profile of various shape. It works with TubesT nesting software seamlessly to realize technique setting, advanced toolpath generation and nesting for standard and special production need.
BOCI BLT Automatic Focus Laser Cutting Head
Our machine's standard laser head with BOCI brand, integrates multiple sets of intelligent sensors, ensuring real-time closed-loop monitoring to give rapid diagnosis and instant warning. We also support Raytools, OSPRI, and WSX brands' laser heads.
Heavy Strong Structure Machine Bed
- The bed is welded with big thickness square tubes for 1-3kw and steel plates for 6kw-40kw, which can guarantee good stability and ensure good accuracy. Our machine bed via high precision welding, heat treatment, natural cooling, and milling processing. - With high-temperature annealing and natural aging, the welding stress is eliminated, which can prevent the deformation of the bed, reduce vibration, and guarantee good cutting accuracy.
Aviation Tensile Aluminum Beam
- The machine adopts an aviation aluminum beam, which is manufactured according to aerospace standards and extruded with 4300 tons of pressure. The beam is processed by T6 heat treatment which can make the beam obtain the highest strength and strong deformation resistance. - Using ultra-high pressure tensile technology and lightweight design, the beam weight is reduced by 30% compared with tensile aluminum beam, and the strength and rigidity are increased by more than 20%. It’s more convenient for high-speed movement and it can greatly increase the processing speed.
Taiwan Hiwin guide rail ( Y axis 30mm)
- High positioning accuracy - Low wear and long-term accuracy - Strong resistance to shock loads - Easy to assemble and interchangeable
Full Automatic Pneumatic Chuck
- The pneumatic chucks are 3 times faster than electric chucks due to one-key clamping and auto centering. -With large and constant clamping force, heavy tubes will be clamped stably. -We use a square chuck so that it can hold more bigger size square and round tubes than the round chucks of other manufacturers.
Machine Processing
Machine Parameters
| Model | ZF3015AC |
| Metal Sheet Cutting Size | 3050mm×1530mm |
| Metal Tube Cutting Size | 6050mm |
| Chuck | RK/BEUT brand pneumatic chuks |
| Chuck Clamping Diameter Range | 90mm/120mm/160mm/220mm/240mm/360mm, etc. |
| Laser Power | 1000W-40000W |
| Laser Source | MAX/Raycus/IPG/JPT( According to customer requirements) |
| Laser Wave Length | 1064nm |
| Working Table | Blades |
| Position Accuracy | 0.02 mm/m |
| Repeatability Accuracy | 0.01 mm |
| Max Acceleration | 1G |
| Cutting Speed | 0-140 m/min |
| Interface | USB,RJ45 |
| Working Voltage | 380v, 3phase, 50hz |
| Working life of fiber module | More than 100000 hours |
| Work Environment | 0-45°C, Moisture 45-85% |
