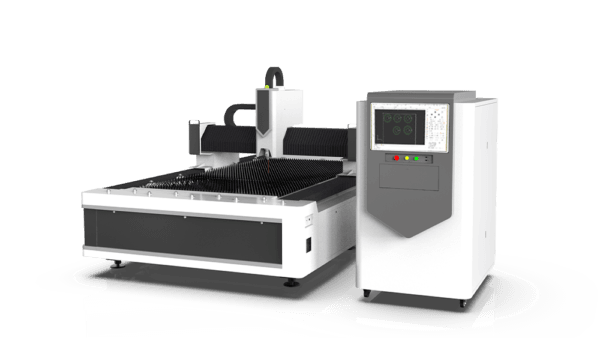

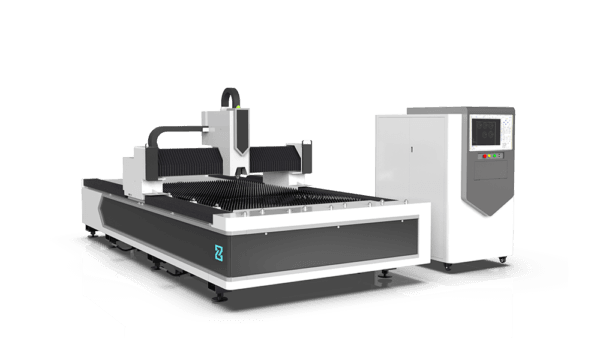

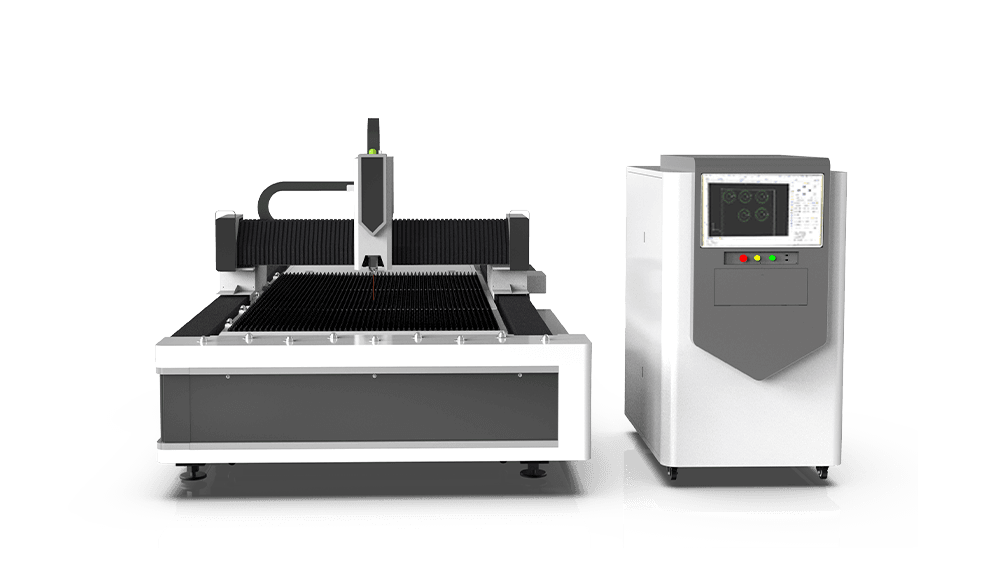

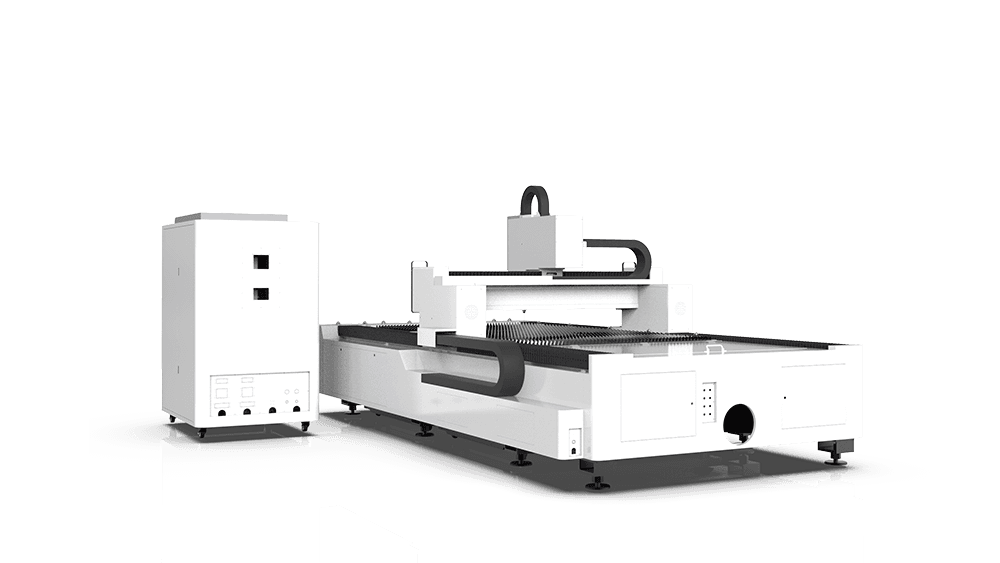

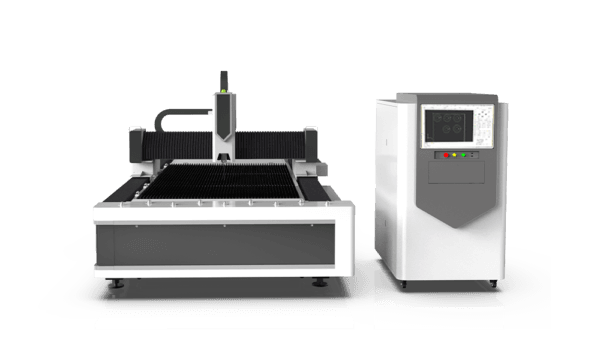

3015AG Ultra High Speed Fiber Laser Cutting Machine
Model: ZF3015AG
Suitable Material: Stainless Steel, Carbon Steel, Copper, Brass, Galvanised or other Metal Materials
2.5G-6G Fiber Laser Cutting Machine
Payment: TT/ LC/Visa/ Mastercard/Credit Cards/Paypal/DP
Warranty: 3 Years
Min. Order Quantity: 1 Set
Supply Ability: 100 Sets Per Month
Machine Woring Video
Precise cutting effect to meet the cutting needs of each customer
Configurations Instruction
Fiber Laser Source
We support laser brands such as MAX, Raycus, IPG, Reci, etc., and provide lasers according to customer requirements. The laser sources a long life and maintenance-free operation, high electro-optical conversion efficiency, good beam quality, high energy density, remote networking diagnosis system, wide modulation frequency, and strong reliability features.
Intelligent Control System
2.5G-6G machine with FSCUT8000 controller system. High-end intelligent EtherCAT bus controller designed for high power fiber laser above 8kW,featured by out of box service, easy to install and adjust, full solution functions, supports custom, automatic and digitization solutions.
BOCI BLT Automatic Focus Laser Cutting Head
Our machine's standard laser head with BOCI brand, integrates multiple sets of intelligent sensors, ensuring real-time closed-loop monitoring to give rapid diagnosis and instant warning. We also support Raytools, OSPRI, and WSX brands' laser heads.
Heavy Strong Structure Machine Bed
The bed is welded with big thickness square tubes for 1-3kw and steel plates for 6kw-40kw, which can guarantee good stability and ensure good accuracy. Our machine bed via high precision welding, heat treatment, natural cooling, and milling processing. With high-temperature annealing and natural aging, the welding stress is eliminated, which can prevent the deformation of the bed, reduce vibration, and guarantee good cutting accuracy.

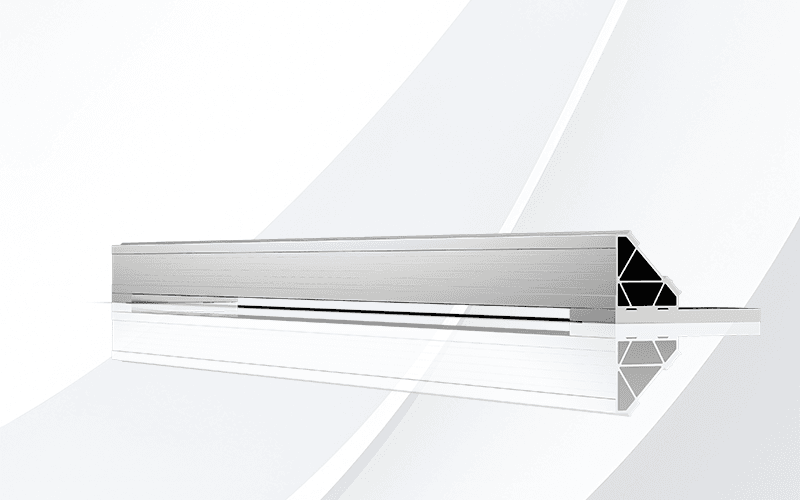

New Design Triangle Aviation Tensile Aluminum Beam
The drag chains for X and Z axes are also placed diagonally at an angle of 45° to reduce the motion inertia. The guide racks are co-planar to ensure the assembly precision and parallelism of the guide racks, so as to ensure the high response of X-axis. Our triangular beam design ensures that the machine bed and beam are stable and immobile under high acceleration, as well as cutting accuracy. Compared with the previous beam, the load inertia is reduced, and further optimization is carried out on the previous cast aluminum triangular gantry, which further increases the cutting accuracy and speed.
Taiwan Hiwin guide rail ( Y axis 30mm)
High positioning accuracy;Low wear and long-term accuracy;Strong resistance to shock loads;Easy to assemble and interchangeable.

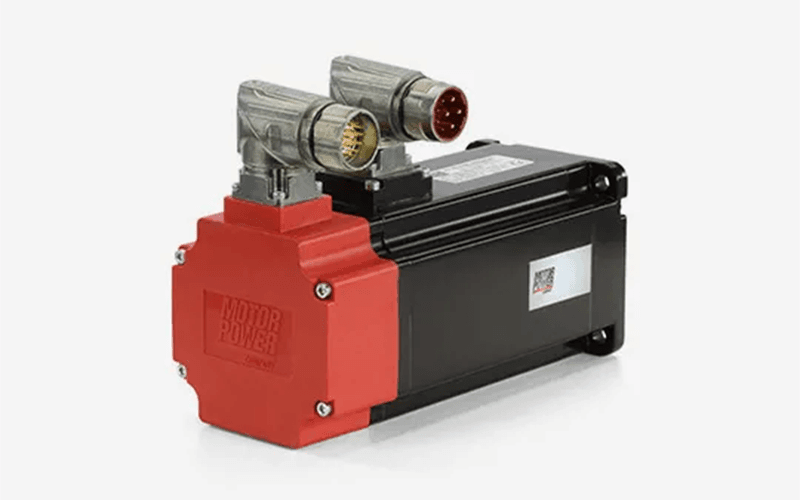

Italy MotorPower Servo Motors
Synchronous brushless servo motors with rare-earth magnets .Rated outputs from 60 W to 8 kW .Servo motor speeds up to 5000 rpm.Insulation class F.IP 65 rating of the motor housing - RAL 9005 black powder coating. Thermal protection PT 1000 (excl. TC 40).Shaft balancing class G 2.5 in accordance with ISO 1940. UL approval

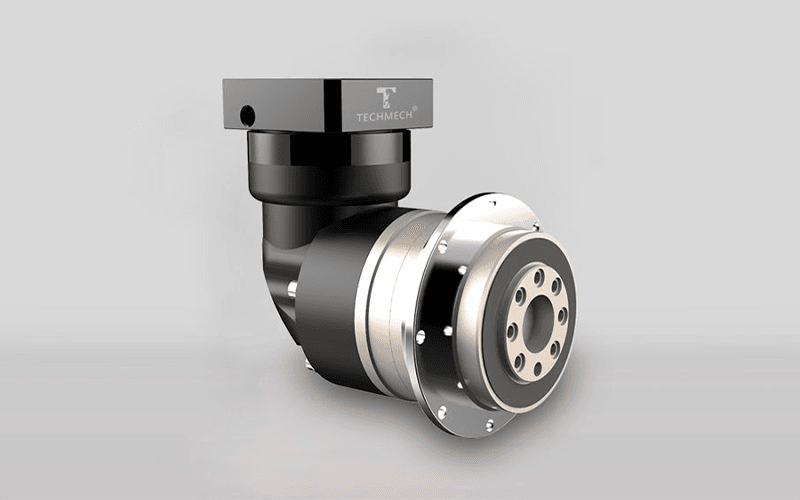

Germany TECHMECH Reducer
Compact rotary flange output saves space and improves torsional stiffness. Standardized Flange interface ensures quick installation of driver components. Backlash less than 7 arcmins. The ratio from 4 to 100. The ambient temperature is -10℃~90℃. If your requirements exceed this range, please contact us. IP65 The rating of the rated protection is IP65. Life-long maintenance free.
Machine Processing
Machine Parameters
| Model | ZF3015AG |
| Cutting Size | 3050mm×1530mm |
| Laser Power | 1000W-40000W |
| Laser Source | MAX/Raycus/IPG/JPT( According to customer requirements) |
| Laser Wave Length | 1064nm |
| Working Table | Blades |
| Position Accuracy | 0.02 mm/m |
| Repeatability Accuracy | 0.01 mm |
| Max Acceleration | 2.5G-6G |
| Cutting Speed | 0-140 m/min |
| Interface | USB,RJ45 |
| Working Voltage | 380v, 3phase, 50hz ( According to customer requirements) |
| Working life of fiber module | More than 100000 hours |
| Work Environment | 0-45°C, Moisture 45-85% |
