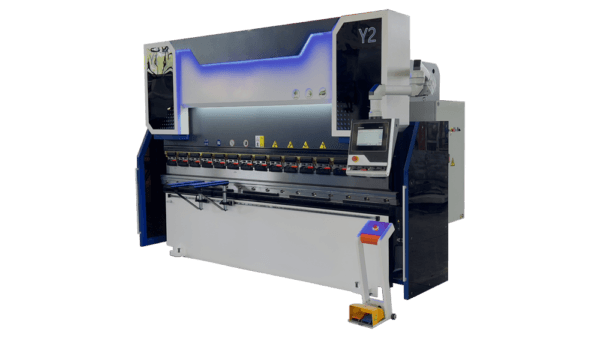

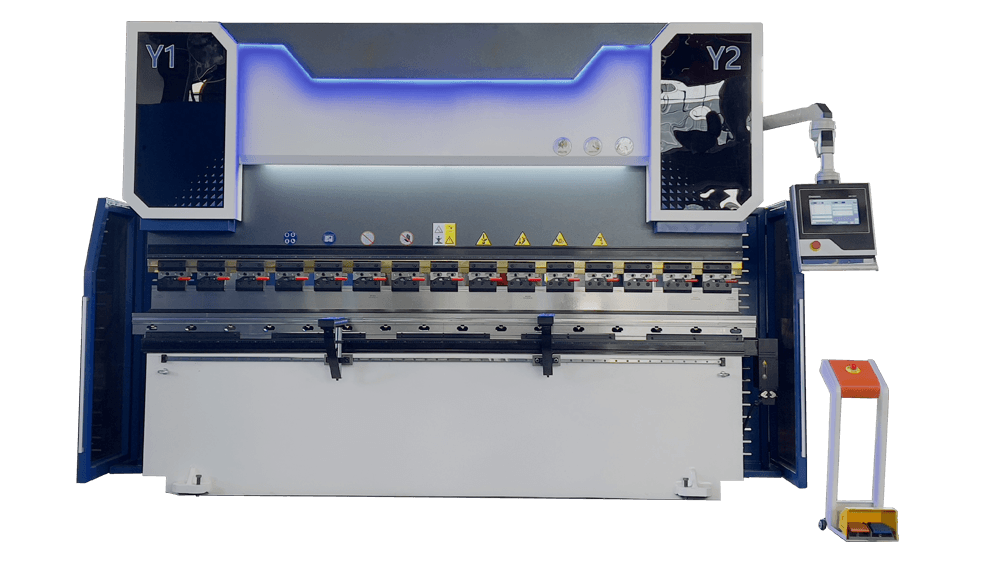

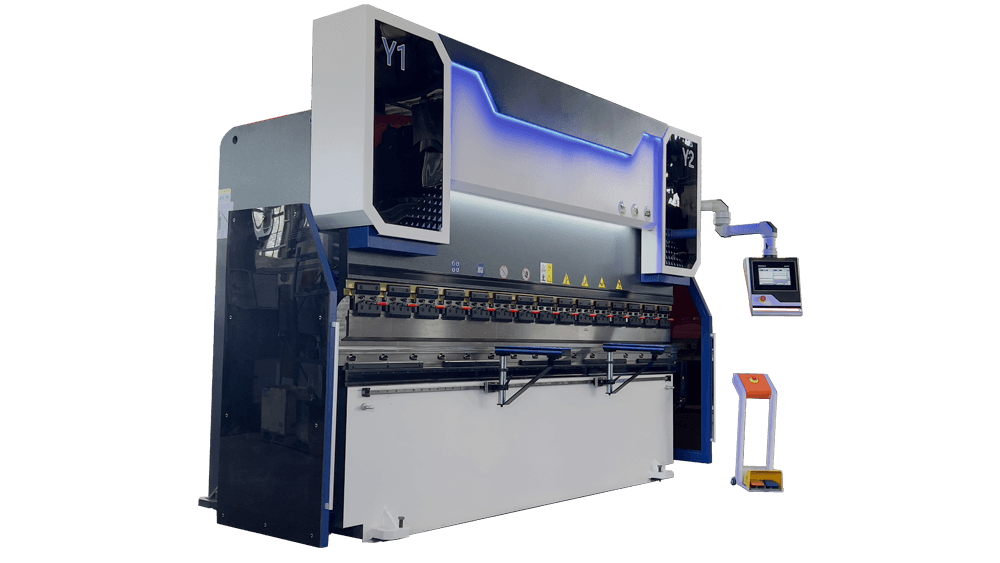

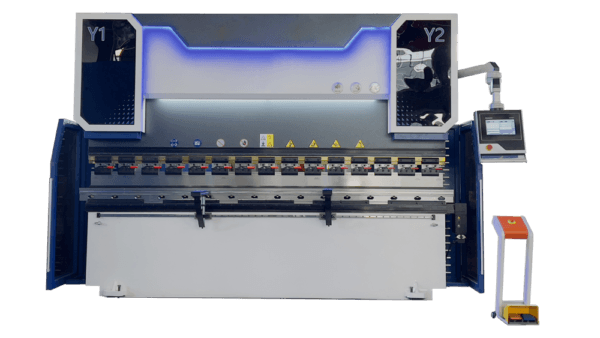

4+1 DELEM53T Electro-hydraulic Servo Bending Machine
Support programming, matched with Holland DELEM system or Italian ESA system.
Electro-hydraulic servo bending machine.
Built-in compensation function, higher bending accuracy.
Machine Woring Video
Precise cutting effect to meet the cutting needs of each customer
Configurations Instruction

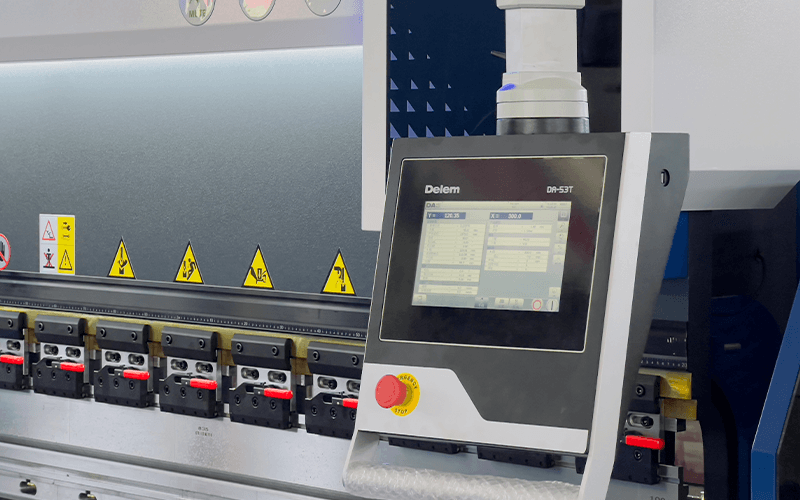

Holland DELEM-DA53T
The controllers are sourced from European countries -Delem from the Netherlands -ESA from Italy -Cybelec from Switzerland Ensuring quality and reliability. Algorithms are advanced enough to optimize bending cycles and decrease setup times, thus boosting productivity, especially during batch processing tasks.
Mechanical Workbench Deflection Compensation System

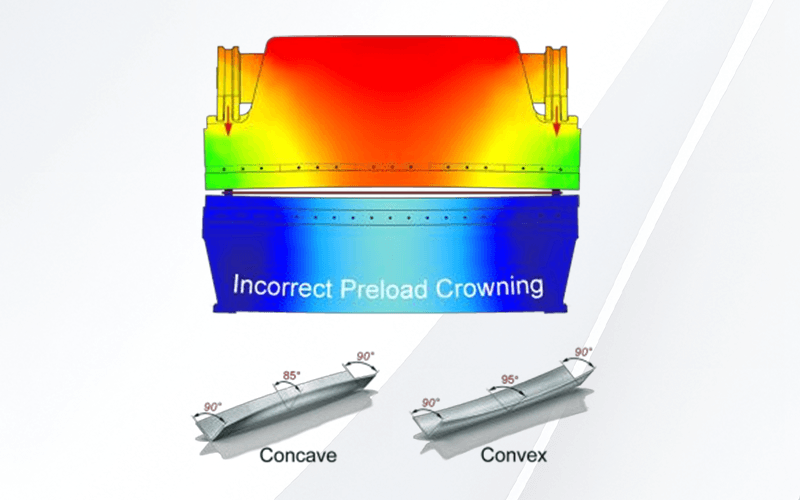

● Mechanical compensation device: When bending sheet materials, the upper slide plate will inevitably produce deflection deformation, causing the bending angle of the workpiece to be small at both ends and large in the middle. ● This machine tool is equipped with a compensation wedge and is controlled by a CNC numerical control system. ● Make the lower worktable produce pre-convexity to compensate for the deflection deformation of the upper slide plate, control the angle change of the workpiece within the tolerance range, and ensure high-quality bending accuracy.
Backgauge System

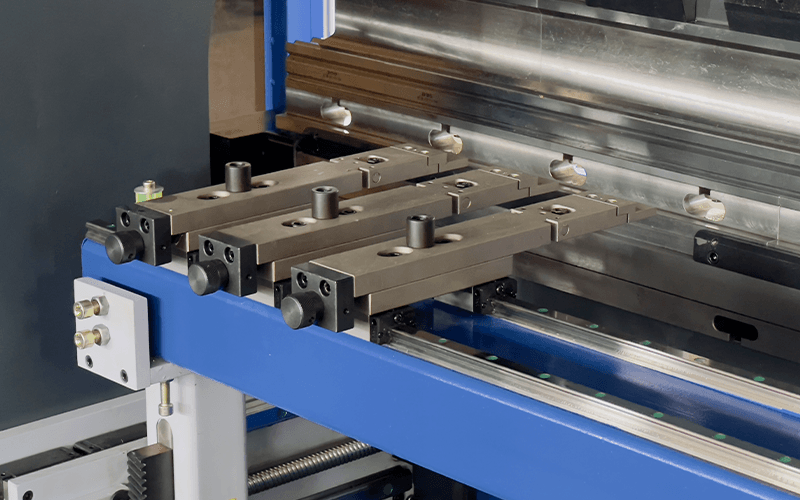

● It has the characteristics of compactness, solidity, small inertia, fast speed and high precision. ● The forward and backward movement (X-axis) and up-and-down movement (R-axis) are driven by servo motors. ● Equipped with two positioning fingers
CNC Model

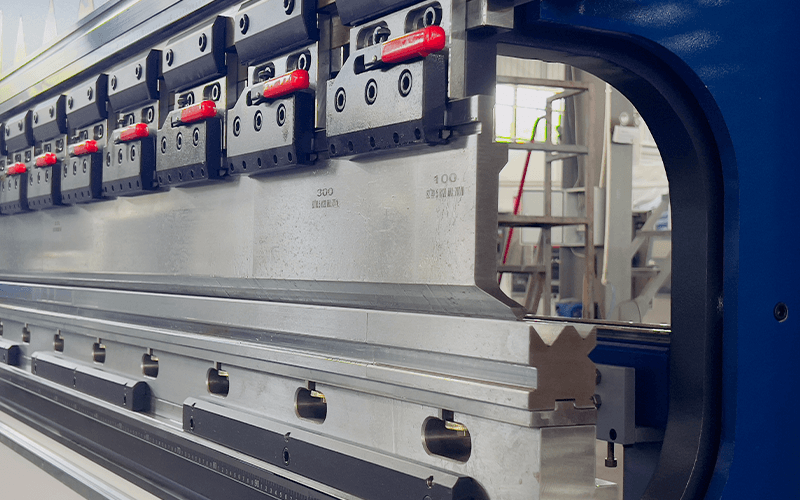

●A set of standard upper and lower molds for the machine. ●The upper mold adopts multiple segmented short molds, spliced to the required length, with high precision, good interchangeability, and easy disassembly and assembly. The connecting part is equipped with a compensation mechanism to compensate for the deflection of the workbench and slider when bending the sheet to ensure higher working accuracy. ●The lower mold is processed into different "V" shaped grooves for easy selection by the operator, and is equipped with a turning mechanism for the lower mold. Simply place the lifting chain on the lifting lugs of the slider and the lower mold lifting lugs, release the top template and raise the slide. The lower mold can be rotated using the block to select the required "V" groove position surface. (The following bending machine CNC mold servo CNC needs to be optional, electro-hydraulic CNC is standard, and the specific dimensions are processed according to customer requirements)
Features
• Sectional Punch (Top Tool) • EURO Standard 4-v concentric mold (Bottom Tool) • Hardened and ground HRC 55
Automatic Crowning System
Different from traditional point compensation, Domino-style equalized compensation method make perfect equalized bending angle. Features: equalized compensation, perfect bending angle.
Machine Processing
Machine Parameters
| X-axis positioning accuracy | ±0.02mm |
| X-axis repeatable positioning accuracy | ±0.02mm |
| Y-axis positioning accuracy | ±0.02mm |
| Y-axis repeatable positioning accuracy | ±0.02mm |
| Working precision | Straight line: ±0.2mm/m, angle: ±0.5°mm/m |
| CNC Control Axes | X1 X2 Y1 Y2 +Compensation axis(V axis) |
| Position Accuracy | 0.02 mm/m |
| Repeatability Accuracy | 0.01 mm |

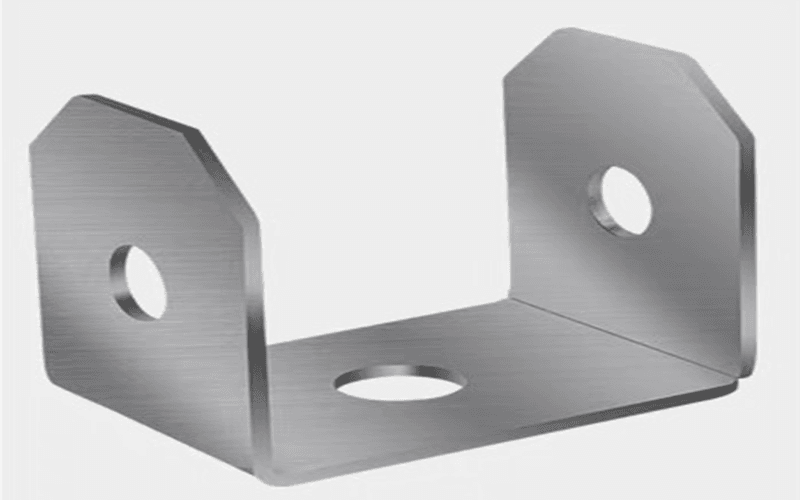

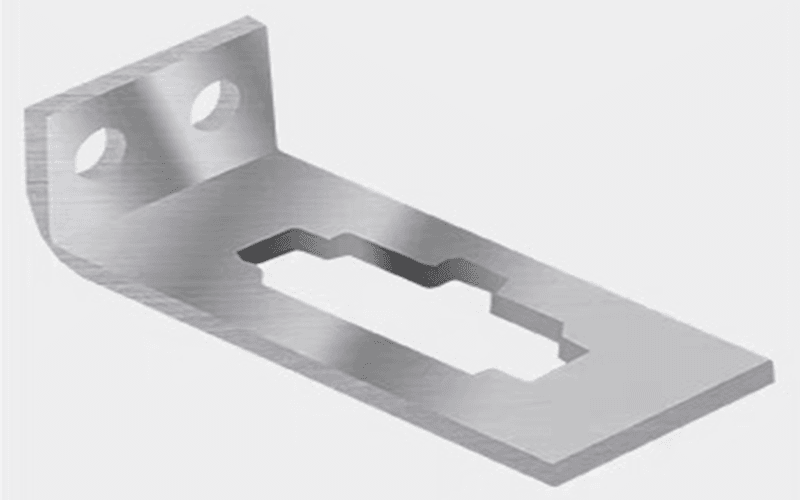

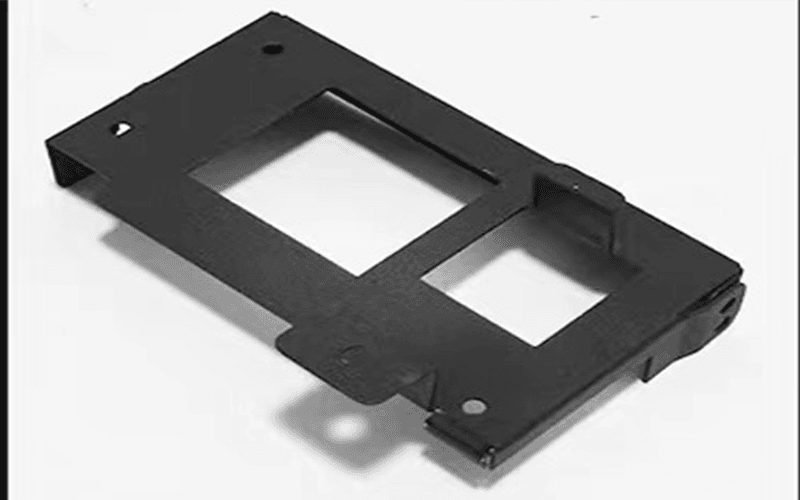

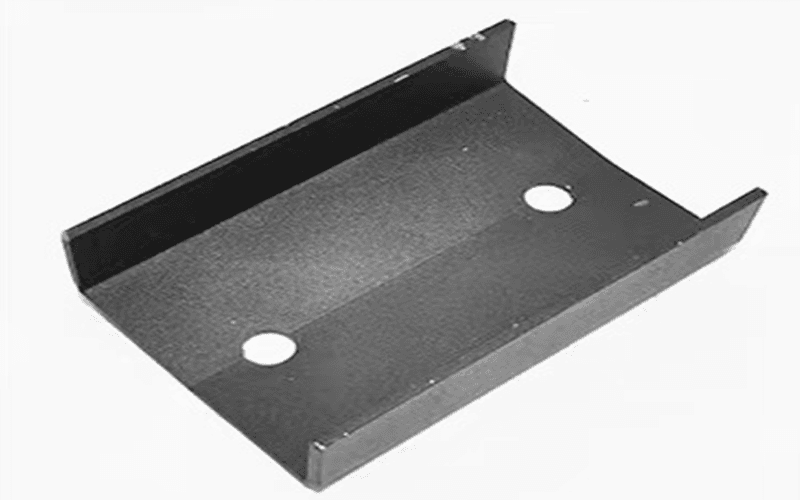

Samples
