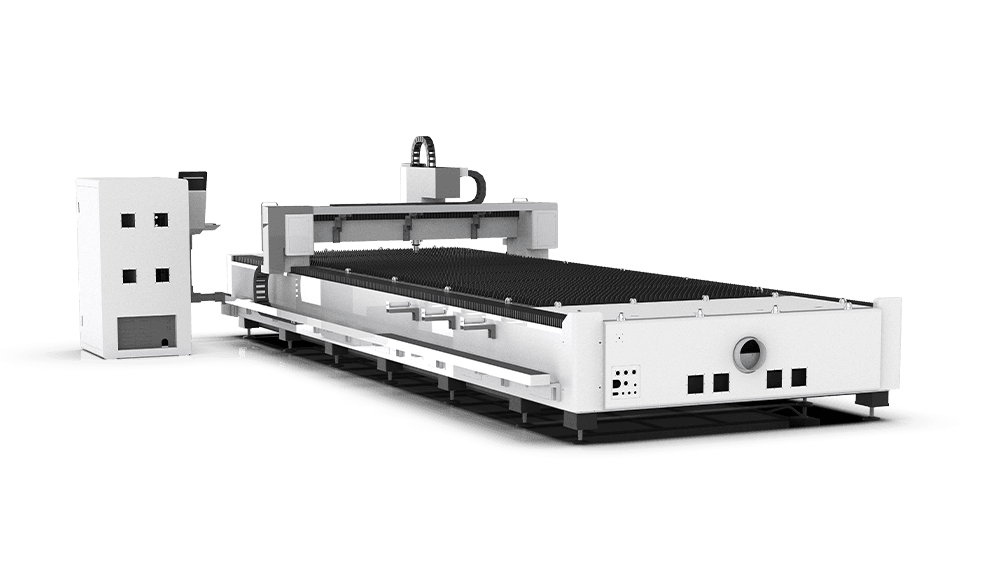

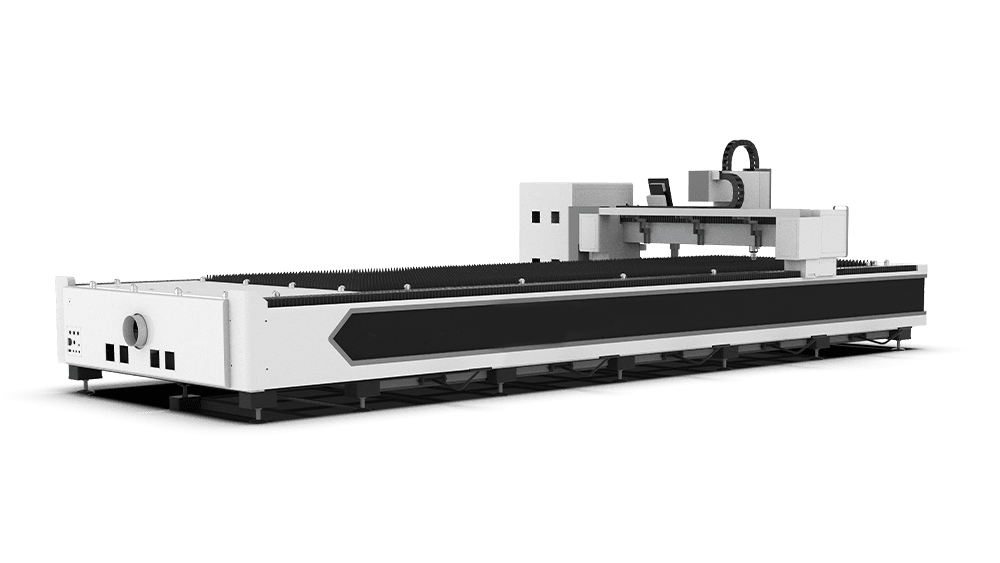

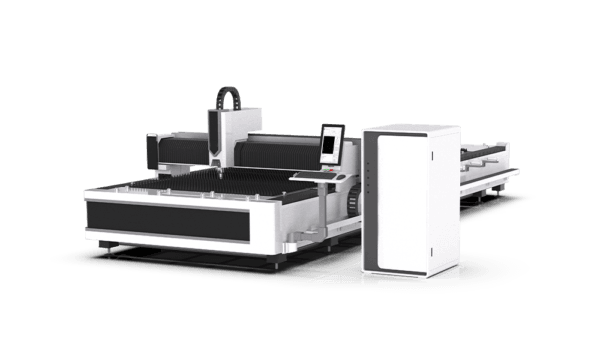

6020A Ultra High Power Metal Fiber Laser Cutting Machine
Model: ZF6020A
Suitable Material: Stainless Steel, Carbon Steel, Copper, Brass, Galvanised or other Metal Materials
High Power Fiber Laser Cutting Machine
Payment: TT/ LC/Visa/ Mastercard/Credit Cards/Paypal/DP
Warranty: 3 Years
Min. Order Quantity: 1 Set
Supply Ability: 100 Sets Per Month
Machine Woring Video
Precise cutting effect to meet the cutting needs of each customer
Configurations Instruction
Fiber Laser Source
We support laser brands such as MAX, Raycus, IPG, Reci, etc., and provide lasers according to customer requirements. The laser sources a long life and maintenance-free operation, high electro-optical conversion efficiency, good beam quality, high energy density, remote networking diagnosis system, wide modulation frequency, and strong reliability features.
Intelligent Control System
Our standard control systems are FSCUT2000E, FSCUT4000E, and FSCUT8000, it is easy to install, easy to debug, have excellent performance, and have a complete solution. The controller with CYPCUT cutting software. We also support raytools, weihong, au3tech, and other control

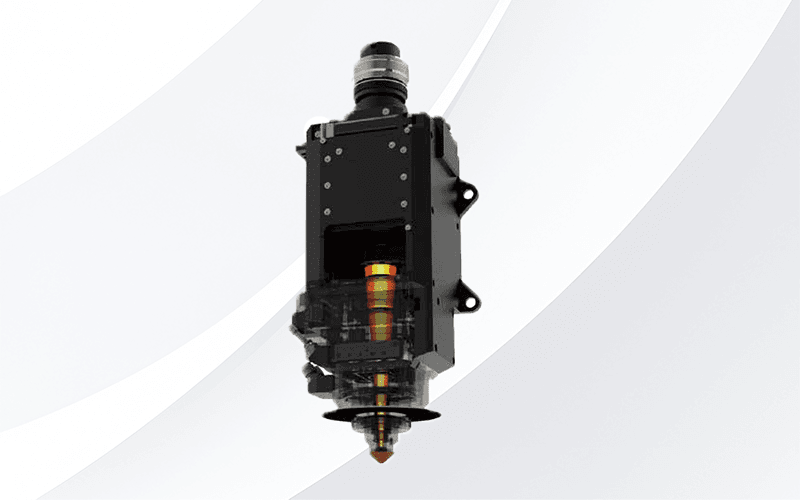

BOCI BLT Automatic Focus Laser Cutting Head
-Intelligent detection of whether the common edge position needs to be perforated or not, and the perforation will be executed if the plate is detected to be misaligned, and the plate will be cut directly if it is not misaligned, which greatly improves the processing efficiency. -Real-time monitoring of the cutting head cavity astigmatism value, which can effectively avoid cutting head damage caused by excessive astigmatism value, and can narrow the contaminated lens investigation paradigm.
Heavy Strong Structure Machine Bed
- The bed is welded with big thickness square tubes for 1-3kw and steel plates for 6kw-40kw, which can guarantee good stability and ensure good accuracy. Our machine bed via high precision welding, heat treatment, natural cooling, and milling processing. - With high-temperature annealing and natural aging, the welding stress is eliminated, which can prevent the deformation of the bed, reduce vibration, and guarantee good cutting accuracy.
Aviation Tensile Aluminum Beam
- The machine adopts an aviation aluminum beam, which is manufactured according to aerospace standards and extruded with 4300 tons of pressure. The beam is processed by T6 heat treatment which can make the beam obtain the highest strength and strong deformation resistance. - Using ultra-high pressure tensile technology and lightweight design, the beam weight is reduced by 30% compared with tensile aluminum beam, and the strength and rigidity are increased by more than 20%. It’s more convenient for high-speed movement and it can greatly increase the processing speed.
Taiwan Hiwin guide rail ( Y axis 30mm)
- High positioning accuracy - Low wear and long-term accuracy - Strong resistance to shock loads - Easy to assemble and interchangeable
Machine Processing
Machine Parameters
| Model | ZF6020A |
| Cutting Size | 6000mm×2000mm |
| Laser Power | 1000W-40000W |
| Laser Source | MAX/Raycus/IPG/JPT( According to customer requirements) |
| Laser Wave Length | 1064nm |
| Working Table | Blades |
| Position Accuracy | 0.02 mm/m |
| Repeatability Accuracy | 0.01 mm |
| Max Acceleration | 1G |
| Cutting Speed | 0-140 m/min |
| Interface | USB,RJ45 |
| Working Voltage | 380v, 3phase, 50hz ( According to customer requirements) |
| Working life of fiber module | More than 100000 hours |
| Work Environment | 0-45°C, Moisture 45-85% |
