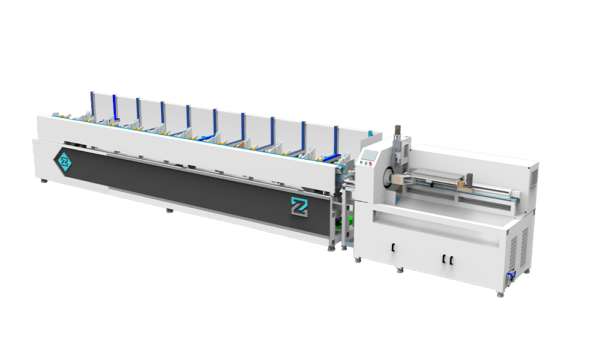

Small Tube Fiber Laser Cutting Machine
Model: ZF90G6/9/12
Suitable Material: Stainless Steel, Carbon Steel, Copper, Brass, Galvanised or other Metal Materials
Small Tube Fiber Laser Cutting Machine
Payment: TT/ LC/Visa/ Mastercard/Credit Cards/Paypal/DP
Warranty: 3 Years
Min. Order Quantity: 1 Set
Supply Ability: 100 Sets Per Month
Machine Woring Video
Precise cutting effect to meet the cutting needs of each customer
Configurations Instruction
Fiber Laser Source

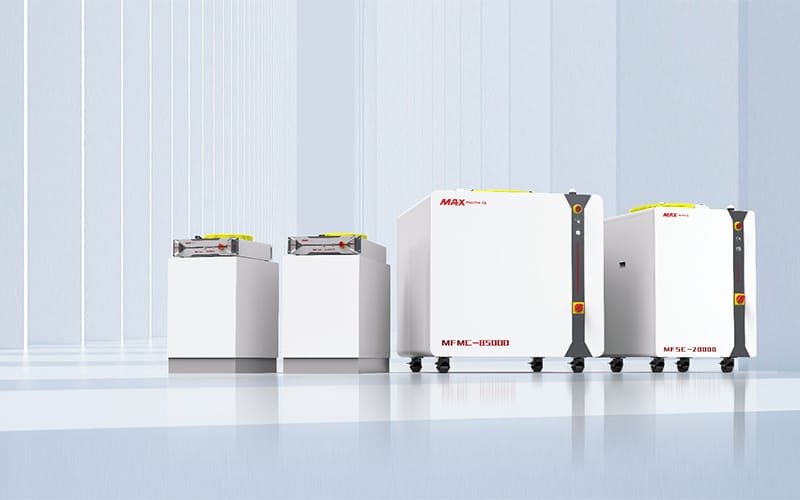

We support laser brands such as MAX, Raycus, IPG, Reci, etc., and provide lasers according to customer requirements. The laser sources a long life and maintenance-free operation, high electro-optical conversion efficiency, good beam quality, high energy density, remote networking diagnosis system, wide modulation frequency, and strong reliability features.
Intelligent Control System
FSCUT3000DE-D EtherCAT controller with advantages of high efficiency and precision as well as shorter tube tail, widely applied in round and square tube of gym equipment, sanitary ware and guardrails.

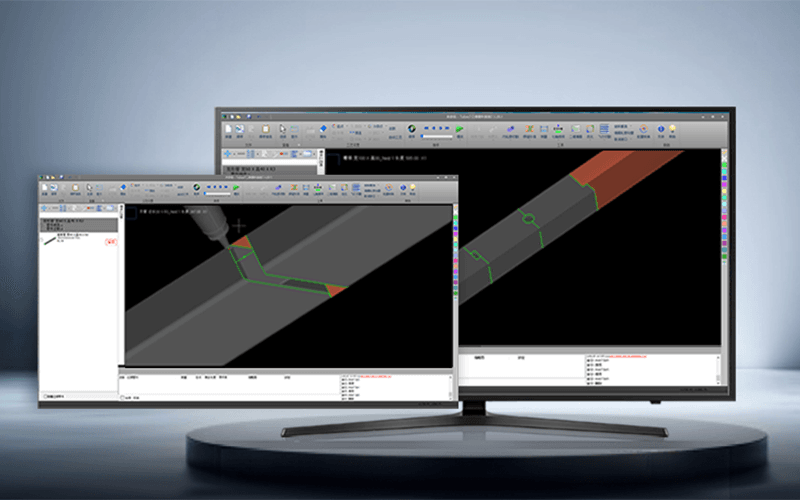

Intelligent Operation Software

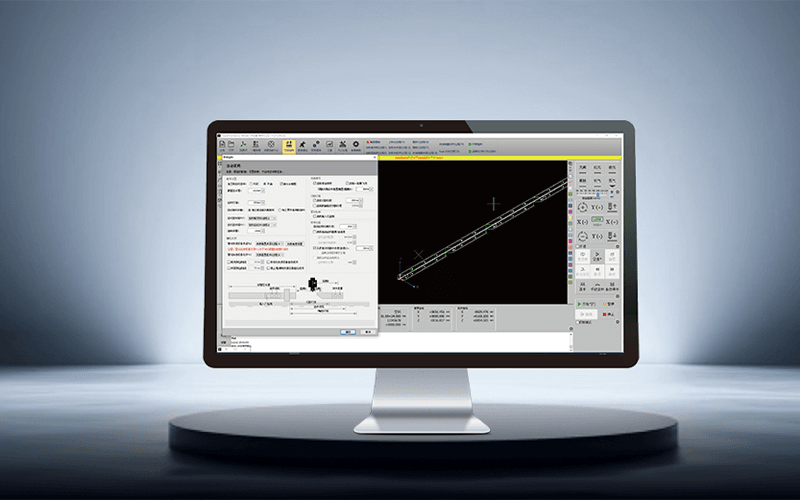

TubePro designed for professional tube cutting, supports production of tube and profile of various shape. It works with TubesT nesting software seamlessly to realize technique setting, advanced toolpath generation and nesting for standard and special production need.

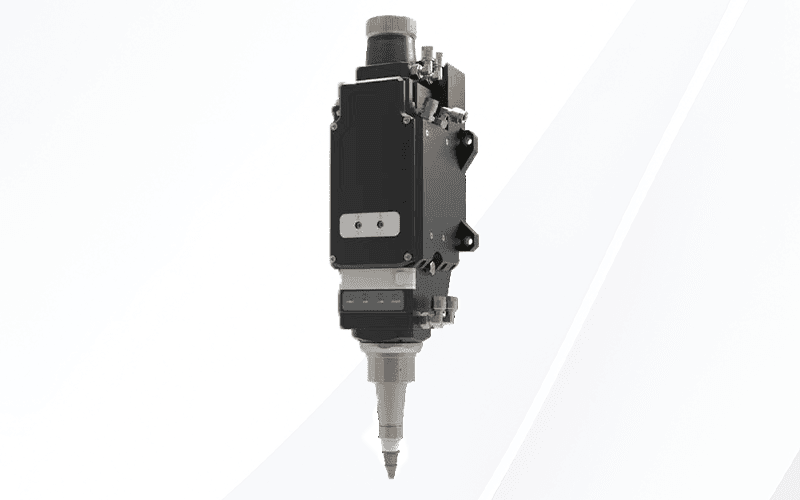

BOCI BLT4X1T Automatic Focus Laser Cutting Head
Real-time monitoring of the sealing of the lower protection area effectively extends the service life of the protection lens and ensures stable production. Dustproof cover is added to the optical lens area to improve the sealing level of the core chamber and prolong the service life of the core lens. Cutting head anti-collision design, effectively reduce the probability of returning to the factory, no need for after-sales visits, customers can replace by themselves, lower maintenance costs. Different types of pipe cutting such as round pipe, square pipe, channel steel and I-beam etc. can be realised.

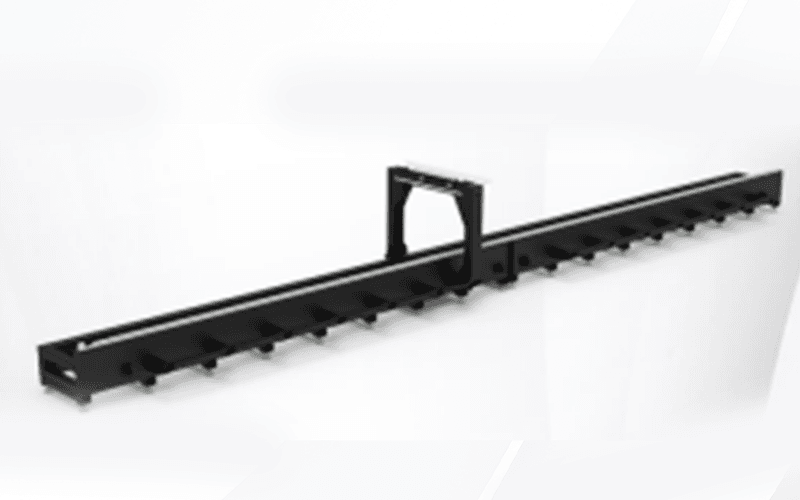

Heavy Strong Structure Machine Bed
The bed is welded with big thickness square tubes for 1-3kw and steel plates for 6kw-40kw, which can guarantee good stability and ensure good accuracy. Our machine bed via high precision welding, heat treatment, natural cooling, and milling processing. With high-temperature annealing and natural aging, the welding stress is eliminated, which can prevent the deformation of the bed, reduce vibration, and guarantee good cutting accuracy.

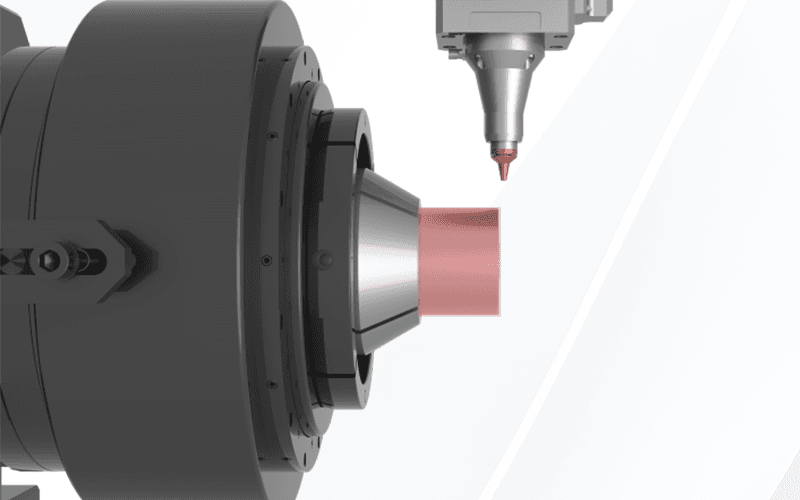

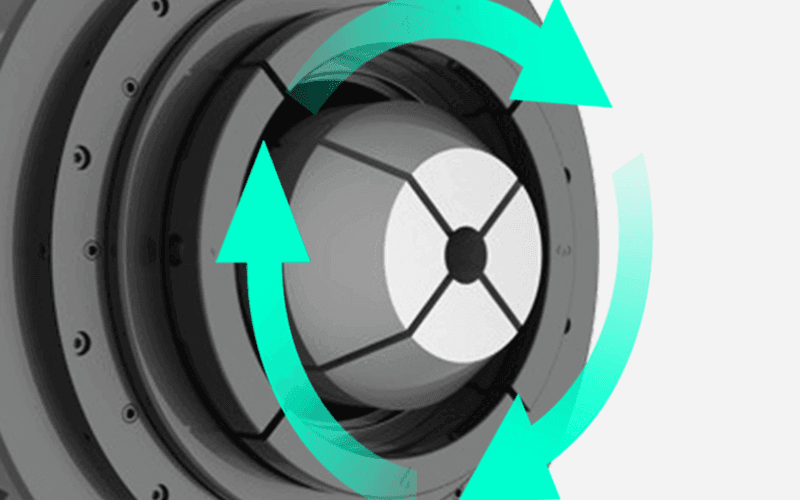

Standard Pneumatic Chuck for Small Tubes, Rotational Speed up to 180 rpm
Equipped with a standard pneumatic chuck specifically designed for small tubes, capable of reaching a rotational speed of 180 revolutions per minute. It provides strong clamping force and quick response time.
Flexible Processing, Effortless Operation
The equipment efficiently handles cutting, drilling, and slotting tasks, suitable for processing various types of tubes, including round, square, rectangular, and oval shapes.

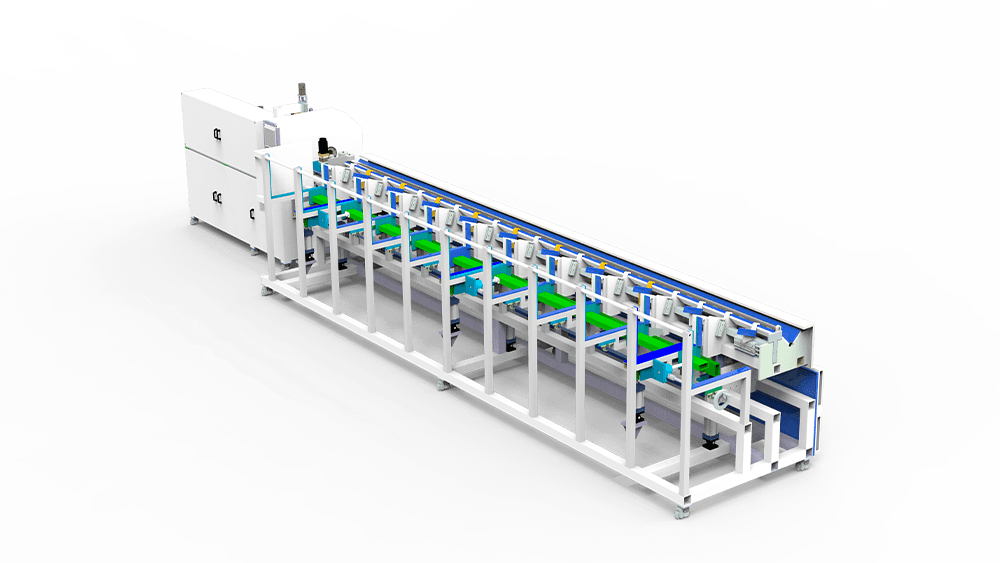

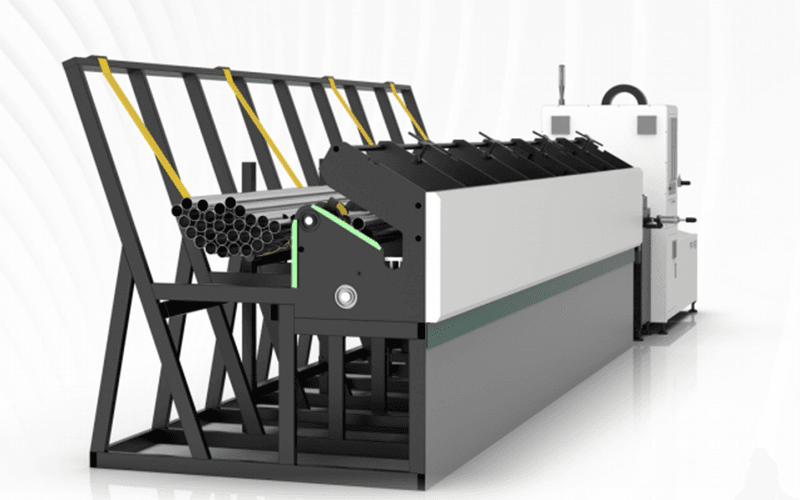

Intelligent Loading, Convenient and Worry-Free
Intelligent feeding system can be equipped with a fully automatic feeding device. The operation is intelligent and responsive, resulting in fast cutting speed. With the fully automatic feeding method, manpower is fully utilized, supporting batch cutting of small tubes and doubling processing efficiency!
Ultra-short tail material, save money and material

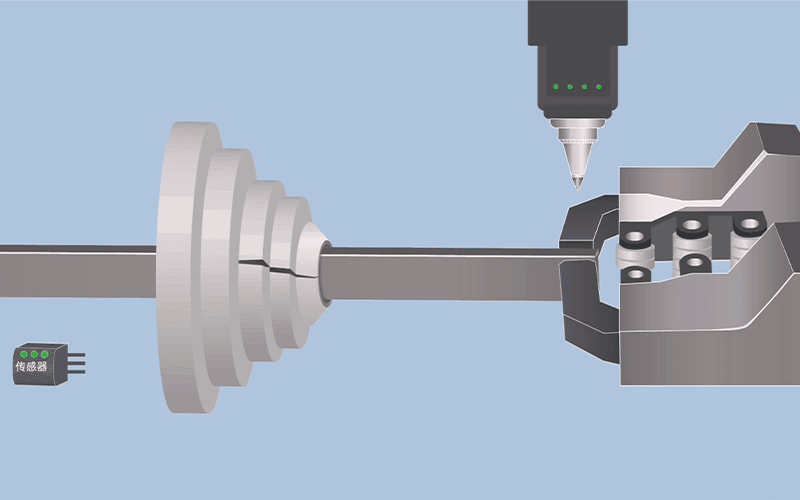

The shortest cutting tail can be up to 80mm, maximising material utilisation and reducing costs.
No-Scratch Cutting, Easy Replacement
Utilizes chucks with equal diameters, ensuring no damage to the surface of the tubes. The chucks are easy and quick to replace, resulting in high cutting quality.
Machine Processing
Machine Parameters
| Model | ZF90G7 |
| Metal Tube Cutting Size | 7000mm |
| Chuck | RK/BEUT brand pneumatic chuks |
| Chuck Clamping Diameter Range | 90mm/120mm |
| Laser Power | 1000W-40000W |
| Laser Source | MAX/Raycus/IPG/JPT( According to customer requirements) |
| Laser Wave Length | 1064nm |
| Working Table | Blades |
| Position Accuracy | 0.02 mm/m |
| Repeatability Accuracy | 0.01 mm |
| Max Acceleration | 1G |
| Cutting Speed | 0-140 m/min |
| Interface | USB,RJ45 |
| Working Voltage | 380v, 3phase, 50hz |
| Working life of fiber module | More than 100000 hours |
| Work Environment | 0-45°C, Moisture 45-85% |
